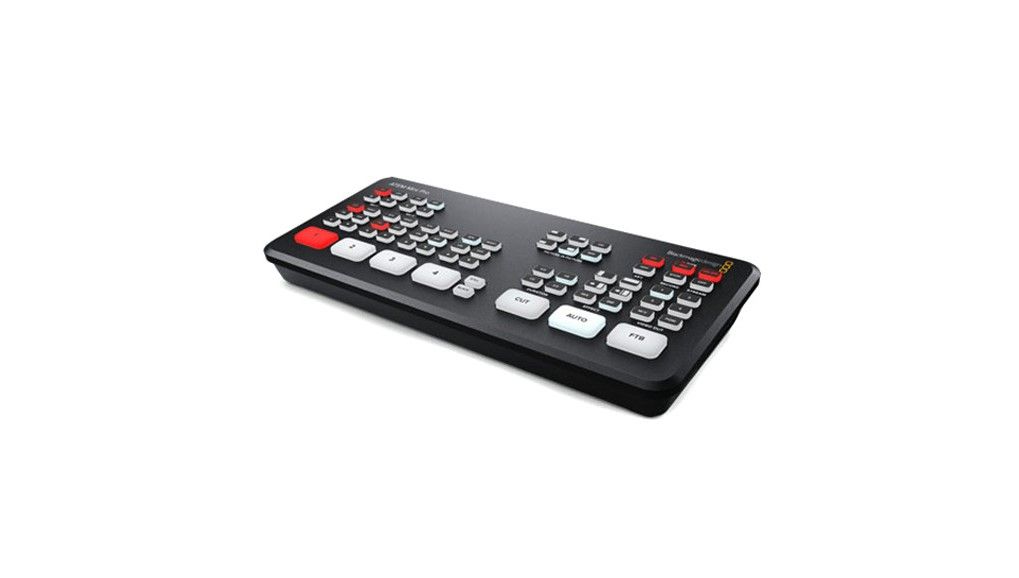

Blackmagic Design ATEM Mini Pro

Blackmagic Design ATEM Mini Pro

Razlika između Mini i Mini Pro je u opciji multiviewa (prikaz svih kamera na vašem monitoru).

Idealan uređaj za vaš streaming.

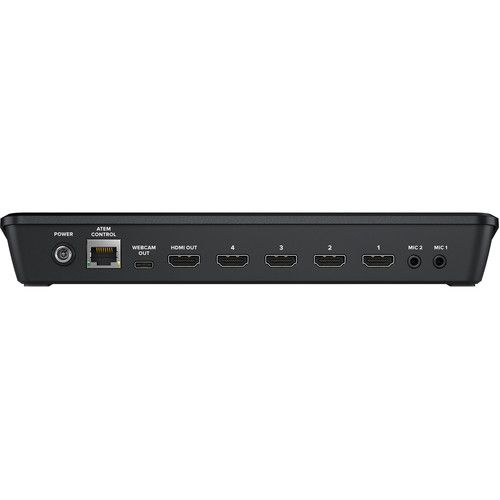

Inputs

• 4 x HDMI Type A
• 2 x 3.5 mm Stereo Analog Audio
• 1 x RJ45 Ethernet

Outputs:

• 1 x HDMI
• 1 x USB Type-C (Computer/Webcam)

Video & Audio
Video Input Formats HDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Video Output Formats: 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Sampling: 4:2:2 YUV
Color Precision: 10-Bit
Color Space: Rec. 709
Color Space Conversion: Hardware-Based, Real Time
Embedded Audio: 2-Channel Input and Output
Audio Mixer: 6-Input, 2-Channel
Media Player: 1 x Player with Fill and Key
Still Image Capacity: 20
Image Format Support: PNG, TGA, BMP, GIF, JPEG, TIFF
General
Keyers

• 1 x Upstream
• 1 x Downstream
• 1 x Advanced Chroma
• 2 x Linear/Luma
• 1 x Transition (DVE Only)

Layers: Up to 4
Generators: 1 x Pattern, 2 x Color
DVE: 1 x Border and Drop Shadow
Monitor Resolution: 1366 x 768 or Greater
Number of Windows: 10
Operating System Support: Apple macOS 10.13, 10.14, or Later  Windows 10
Power Input: 1 x Barrel
Voltage_: 12 V
Power Draw: 18 W
Operating Temperature: 41 to 104°F / 5 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°
Relative Humidity: 0 to 90% Non-Condensing
Dimensions: 23.8 x 10.4 x 3.6 cm
Weight: 550 g
