Key features
Nebula C8 - 8 Chip Light Engine
Output: 24620 Lux at 1m (Bare, 5600K)
1000-20000K CCT, Full RGB Color Control
CRI: 96, TLCI: 97
+/- 200 Green/Magenta Tint Adjustment
Onboard, DMX/RDM, CRMX & App Control
power options: AC/DC Operation
IP66 Rating & Bowens Compatibility
Includes Trolley Case, WC-EXT Wired Controller & 25° BE Mount Reflector
Overview

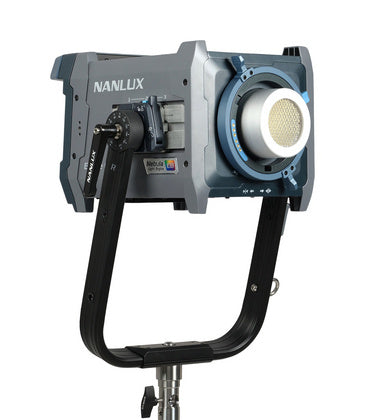

The Evoke 600C is a powerful, versatile, and reliable full-color point light source designed for professional production.
Equipped with the Nebula C8 Color Light Engine, the Evoke 600C delivers an ultra-wide color temperature range of 1000K-20000K and stunning color performance. Its all-in-one design, combined with a magnesium-alloy housing, ensures a compact, lightweight, and durable fixture. With IP66 all-weather protection, it is ready for use in various extreme environments. Continuing the Evoke family's excellence in high output and excellent light quality, both white and color light are bright and powerful. The BE mount Evoke 600C is also compatible with the Bowens mount accessory ecosystem, and with the NL to BE mount adapter, it can accommodate NL mount accessories, providing users with more comprehensive and professional lighting shaping options.
Exceptional Light Quality Powerful Color Output Ample lighting on set provides filmmakers with the strongest support. The Evoke 600C upholds the series' outstanding performance in illuminance, delivering powerful and superior white light and colored light.
It can serve as a key light in smaller setups or as a fill light in larger scenes, shaping diverse lighting effects and atmosphere.
20820 lux @3m (with reflector, 5600K) / 11110 lux @3m (with reflector, green)
Nebula C8 Color Light Engine
The Nebula C8 Color Light Engine combines eight colors (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo) to give the Evoke 600C a wider color temperature range, more saturated colors, and superior color rendering.
CCT Range:1000K-20000K (G/M±200)
Achieves 79% coverage of the CIE 1931 visible color gamut.
Achieves 3% more coverage within the visible color gamut than Rec. 2020.
Achieves 92% coverage of the Rec. 2020 color space.
CRI Average: 96 / TM-30 Rf Average: 96 / SSI (3200K): 86
TLCI Average: 97 / TM-30 Rg Average: 100 / SSI (5600K): 78
The Nebula C8 extends its original red color with addition of deep-red color. This extends coverage across the red spectrum, delivering richer, healthier skin tones with a natural vibrancy.
Various Lighting Modes
The Evoke 600C has six built-in lighting modes with fully adjustable parameters, delivering diverse lighting effects quickly.
CCT Mode
Ultra wide CCT range from 1000K to 20000K, and supports ±200 green/magenta adjustment across the entire range.
HSI Mode
Flexible adjustment of 360 hues with 100% saturation.
RGBW Mode
Independent tuning of the red, green, blue, and white channels for precise color matching.
XY Coordinates Mode
Offers precise color control within the color space through adjustments coordinate values.
Gel Mode
Provides access to 230 selectable LEE gels and 230 Rosco gels.
FX Effect Mode
15 dynamic effects with adjustable parameters to simulate a wide range of atmospheres and lighting scenarios.
HUE LOOP, CCT LOOP, INT LOOP, FLASH, PULSE, STORM, POLICE CAR, TV, KINDLE/FIRE PAPARAZZI, DISCO, BAD BULB, FIREWORK, EXPLOSION, WELDING
Better Dimming Performance
The Evoke 600C supports ultra-precise dimming in 0.1% increments and meets filmmakers' demand for precise control of lighting. The low end dimming has also been optimized, it remains stable and smooth, enabling soft fade-in and fade-out lighting transitions.
Single-Cable, Plug-and-Play
To enable rapid deployment and more convenient lighting setups, the Evoke 600C adopts an all-in-one design, combining the lamp head, control unit, and power supply into a single fixture-allowing the fixture to be ready for use with a single cable.
IP66 Stormproof Protection
The entire housing of Evoke 600C is rated IP66, built to withstand dust, sand, heavy rain, and other harsh conditions, ensuring reliable operation even in the toughest environments.
Versatile Accessory Compatibility
BE mount: fixture is designed with the new BE mount (with electronic contacts). In addition to supporting BE mount accessories, it is compatible with Bowens mount ecosystem, and NL mount accessories via the NL to BE Mount Adapter*, allowing users to continue using existing accessories and reducing the need for additional investment.
The Evoke 600C can be powered by a V-mount battery via the optional Power Station*, offering a more flexible power solution and extended runtime for outdoor or on-the-go shooting.
With the optional Motorized Yoke*, the fixture's tilt and pan angle s can be adjusted easily when it is mounted at height, without frequent manual adjustments, improving both lighting efficiency and on-set safety.
Meticulous Design
The Evoke 600C is meticulously crafted in every detail, from power connections to accessory mounting, from extension port to control options - each design choice is aimed at enhancing operational efficiency and user comfort.
Power Input
With an integrated AC/DC input port, the fixture can be powered directly by either wall outlet (AC 100-240V) or DC power (48V/12.5A).
Dual-Side Locking Mechanism

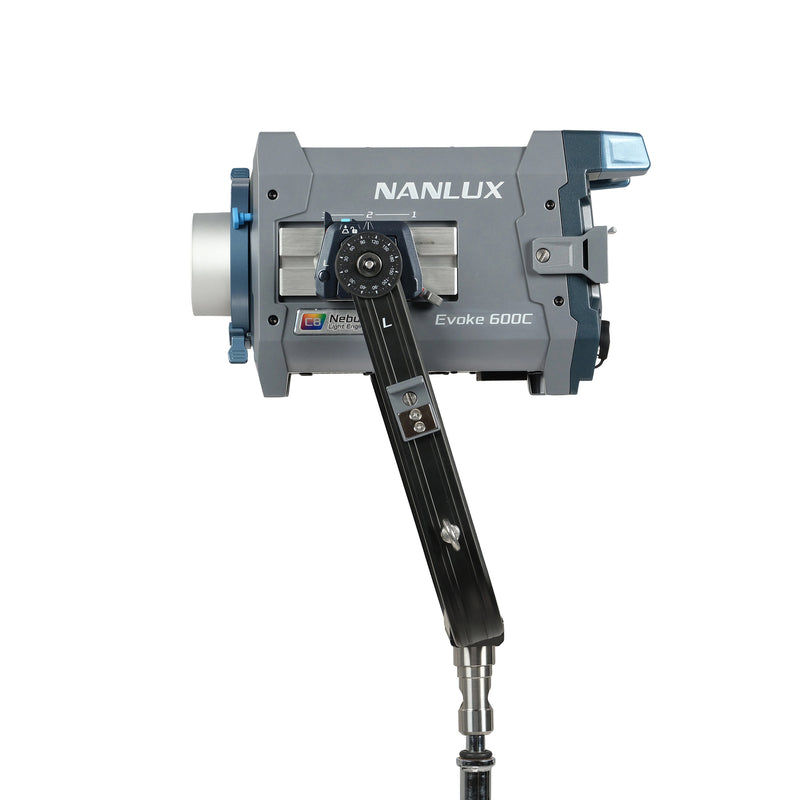

The locking mechanism features angle indicator, and together with the adjustable handle, it allows the tilt angle to be secured quickly.
Balance Adjusting Rail
Both sides of the fixture have balance adjusting rails, enabling flexible adjustment of the balance position of the head, ensuring that the fixture is closer to balance when different accessories mounted on.
1/4"-20 Threads
The fixture features two 1/4"-20 threads (with anti-twist design) on both sides, allowing the attachment of magnetic base for securing an extension adapter.
3/8" Threads
There are 3/8" threads reserved on the bottom, for installing the skid to the fixture.
Offset Yoke
Expands the tilt adjustment range when mounting large accessories, enhancing lighting setup flexibility. The yoke is designed with 1/4"-20 threads (with anti-twist design) that allow the magnetic base to be mounted for securely holding the wired controller.
Dual Security
The PosiTight system has been added to the Evoke 600C's BE mount, providing a dual-safety mechanism that ensures a secure connection between the fixture and the accessory.
Comprehensive Control Options
The Evoke 600C retains the Evoke series' efficient and versatile control system. Whether on professional sets with multiple cameras and lighting fixtures or in compact shoots with smaller crews, it enables quick presets, switching, and adjustments, allowing users to adapt quickly and focus on creation.
On-board, NANLINK APP, Wired Controller, DMX/RDM, LumenRadio, CRMX, Art-net/sACN, Remote Controller, NFC
Wired Controller
The fixture can be connected to the included wired controller (WC-EXT). With an 8-meter cable, it accommodates high rigging positions and long-distance lighting setups. The wired controller also features an IP66 rating, making it suitable for use in the rain alongside the fixture.
NANLINK APP2.0
The Evoke 600C can be controlled by the Nanlink App 2.0 through its built-in Bluetooth module, making flexible and simple wireless control possible.
DMX/RDM Control
The Evoke 600C can be controlled via DMX/RDM by connecting the 5 pin XLR DMX in and out ports, providing a stable connection for group control.
LumenRadio CRMX
With a built-in LumenRadio Timoteo module, the Evoke 600C can be connected to the CRMX control ecosystem and provide flexible and stable wireless DMX control.
Art-Net/sACN
The Evoke 600C can be controlled via Ethernet by connecting the optional LAN Extension Adapter (AS-EXT-LAN), which can convert fixture's extension port into LAN 1 and LAN 2 ports, enabling longer distance signal transmission than an XLR cable.
Remote Controller
The Evoke 600C can be controlled wirelessly using the optional remote controller (W SRC-C2) allowing for quick and convenient adjustments.
NFC
Users can quickly connect the Evoke 600C to an NFC-enabled phone or tablet running Nanlink App 2.0 by bringing the device close to the fixture's NFC tag. This allows users to batch-set DMX parameters for multiple lights even when they are powered off, greatly improving pairing efficiency.
Complete Accessory Ecosystem
The Evoke 600C features the new BE mount (with electronic contacts), which can recognize accessories and correct color casts, also power the motorized attachment. The fixture can still illuminate when mounted on an accessory without electronic contacts.
The Evoke 600C is also compatible with Bowens mount accessory ecosystem, and the NL mount accessories via the NL to BE mount adapter, providing filmmakers with more comprehensive and professional accessory support.
BE Mount Accessory*
RF-BE-PB BE55 Parallel Beam Reflector*
AS-NLA-BE NL to BE Mount Adapter*
FL-22E Motorized Fresnel Lens 15°-50°
MD-DB-BE20 BE Mount Diffusion Ball 20cm*

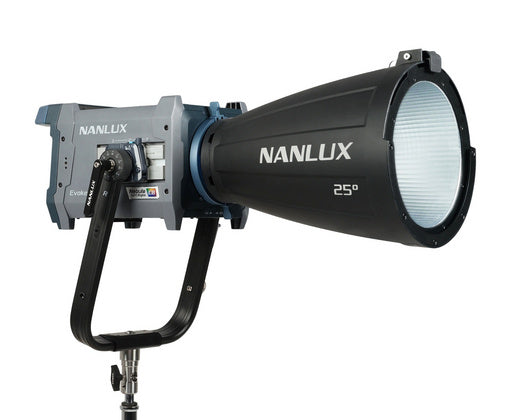

RF-BE-25/45 BE Mount Reflector 25°/45°
BE Mount Projection Attachment*
Reliable Cooling System
The Evoke 600C is equipped with an efficient cooling system featuring five built-in fan modes. In Smart mode, the noise level is as low as 31 dB(A), ensuring quiet, reliable performance while meeting the needs of different production environments.
Fan Mode
Smart - Max output: 100%
The fixture automatically adjusts the fan speed according to the ambient temperature.
Full Speed - Max output: 100%
Low Speed - Max output: 50%
Off - Max output:15%
Pause - Max output: 100%
When the fixture reaches the critical temperature, the fan will automatically switch to the Smart mode.
The fan can remain paused for approximately 2 minutes when the ambient temperature is 25 °C, and for about 1 minute at 35 °C.
Durable Trolley Case
For better storage and higher deployment efficiency, a trolley case (CC-ST-EV600C) are added. Its interior padded dividers provide reliable protection for the Evoke 600C and the accessories against impact. With a retractable handle and durable wheels, the case offers easy mobility, making it effortless to transport the equipment to shooting locations.
Specifications
Model: Evoke 600C
Rated Power: 600W
Input Voltage/Current: AC100-240V/50-60Hz, 8A Max, DC48V/12.5A
Beam Angle: 65°
LED Light Engine: Nebula C8 Light Engine: dRRALGCBI
CCT: 1000K-20000K (G/M±200)
CRI Average: 96, TLCI Average: 97
TM-30 Rf Average: 96, TM-30 Rg Average: 100
SSI (3200K): 86, SSI (5600K): 78
Dimming: 0.0%-100.0%, by 0.1% increment
IP Rating: IP66
Control: On-board, Wired Controller, Nanlink App, Remote Controller, DMX/RDM, LumenRadio CRMX, Art-Net/sACN* (*via the Extension Adapter)
Dimming Curve: Linear, Exponent, Logarithm, S Curve, Gamma 2.2, Gamma 2.4, Gamma 2.6
Special Effect: CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Size and weight
Light Fixture: 358. 2×246.3×205.33mm
Yoke: 405×349.5×63.6mm
RF-BE-25 BE Mount Reflector 25°: Ф131.8×273×372.5mm
WC-EXT Wired Controller: 149. 9×121.7×41mm
CC-ST-EV600C Trolley Case: 460×370×580mm
Light Fixture: 7.26kg.
Yoke: 1.02kg
RF-BE-25 BE Mount Reflector 25°: 1.654kg
WC-EXT Wired Controller: 0.493kg
CC-ST-EV600C Trolley Case: 6.6kg
Certification: CE, UKCA, RoHS, PSE Circle, KCC, BIS, FCC-ID, SAA+C Tick+RCM, ETL+cETL, NCC, Test Report, IP66
Photometrics
Light Only
3200K: 1m - 22130 lux / 2056 fc; 3m - 2512 lux / 233 fc; 5m - 952 lux / 88 fc;
5600K: 1m - 24620 lux / 2287 fc; 3m - 2754 lux / 256 fc; 5m - 1042 lux / 97 fc;
R: 1m - 3790 lux / 352 fc; 3m - 421 lux / 39 fc; 5m - 158 lux / 15 fc;
G: 1m - 13910 lux / 1292 fc; 3m - 1567 lux / 146 fc; 5m - 592 lux / 55 fc;
B: 1m - 2109 lux / 196 fc; 3m - 236 lux / 22 fc; 5m - 89 lux / 8 fc;
With 25° Reflector
3200K: 3m - 17610 lux / 1636 fc; 5m - 5780 lux / 537 fc; 7m - 2866 lux / 266 fc;
5600K: 3m - 20820 lux / 1934 fc; 5m - 6810 lux / 633 fc; 7m - 3380 lux / 314 fc;
R: 3m - 2326 lux / 216 fc; 5m - 771 lux / 72 fc; 7m - 380 lux / 35 fc;
G: 3m - 11110 lux / 1032 fc; 5m - 3640 lux / 338 fc; 7m - 1810 lux / 168 fc;
B: 3m - 1866 lux / 173 fc; 5m - 614 lux / 57 fc; 7m - 304 lux / 28 fc;
With 45° Reflector
3200K: 3m - 6700 lux / 622 fc; 5m - 2400 lux / 223 fc; 7m - 1241 lux / 115 fc;
5600K: 3m - 7740 lux / 719 fc; 5m - 2766 lux / 257 fc; 7m - 1429 lux / 133 fc;
R: 3m - 904 lux / 84 fc; 5m - 330 lux / 31 fc; 7m - 168 lux / 16 fc;
G: 3m - 4170 lux / 387 fc; 5m - 1490 lux / 138 fc; 7m - 772 lux / 72 fc;
B: 3m - 679 lux / 63 fc; 5m - 242 lux / 22 fc; 7m - 125 lux / 12 fc;
