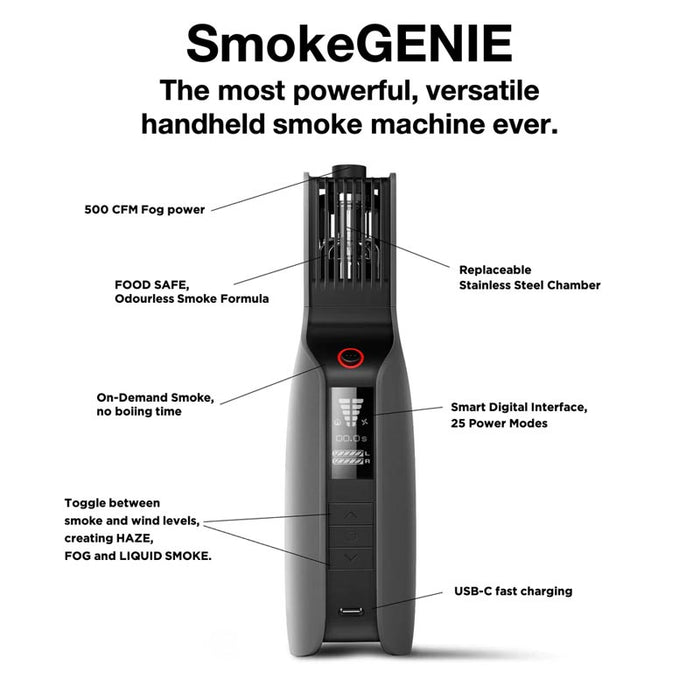

SmokeGENIE Starter Kit

The SmokeGENIE is a compact smoke machine that produces a surprising amount of fog and (low-level) smoke at the push of a button. On one battery charge, the SmokeGENIE works for up to four hours. The SmokeGENIE is ideal for creative photography, film productions and performances where you want to add a special atmosphere by blowing smoke or fog into the room. Thanks to the different attachments, you can choose to concentrate smoke in one spot or blow it wide into the room. It is even possible to let the smoke hang in one specific area for more than 10 seconds. For example, on a shooting table or around clothing.

SmokeGENIE Starter Kit

You have full control over the smoke production of the SmokeGENIE. There are 25 different modes in terms of spread and amount of smoke. With the Starter Kit, you produce classic, dense smoke similar to a cloud in the sky. The smoke briefly stays hang and in an area of several tens of centimeters and then slowly dissolves. You have a choice of five different smoke levels. At levels 1 through 3, you can continue to generate this smoke indefinitely. Do you also want to produce fog and low-hanging fog? Then order the Pro Pack (see optional accessories).

SmokeGENIE in practice

Smoke remains visible in a room for 10 to 45 minutes, depending on the degree of ventilation. You use the SmokeGENIE both directly with the button on the back and via the included remote control. This allows you to start and stop smoke production from five meters away. The remote control works on a 23A 12V battery, which is not included. The SmokeGENIE itself runs on two 18650 type batteries (with flat head). These are not included. If you use rechargeable 18650 batteries, you can charge them through the SmokeGENIE's USB-C port - even when the SmokeGENIE is in use. Before use, always place the plastic heat shield and flexible tube around the capsule, as the capsule and output are hot. To use the SmokeGENIE in practice, perform the following steps:

1. Fill the clear capsules with liquid. There is an opening at the top for this, behind the rubber cap. The liquid is supplied in a 60 ml vial, enough for two hours of non-stop smoke production on setting 3. Vials and capsules are of course available separately (see optional accessories).
2. Screw the capsule onto the SmokeGENIE (threaded connection).
3. Insert two 18650 batteries into the SmokeGENIE (not included).
4. Press the button on the front three times. The SmokeGENIE is almost immediately ready for use, so you can use the button on the back (or supplied remote control) to produce smoke immediately.

Application SmokeGENIE

If you are a creative person who likes to use smoke, the SmokeGENIE is ideal. Perfect for film shoots, for example to release smoke under the hood or from the kitchen. In addition, the SmokeGENIE is also great for use in theaters, to produce smoke locally. The SmokeGENIE is immediately ready to use, lightweight, works at five meters distance with the remote control (433mHz) and works for hours on standby, to produce instant and long-lasting smoke when you press the button. The SmokeGENIE - unlike traditional smoke machines - produces no unwanted "puffs" of smoke in standby.

Technical specifications SmokeGENIE

With the SmokeGENIE we supply a capsule for smoke liquid. As a consumable, these last for at least 100 sessions and are available separately (see optional accessories). You fill the capsule of the SmokeGENIE with special SmokeGENIE liquid, made of food-safe, vegetable glycerin and propylene glycol. It is safe to inhale the smoke as humans and animals in indoor spaces. 9 ml of SmokeGENIE liquid fits in the capsule, enough for an average of 15 minutes of smoke production. Liquid from other manufacturers is not suitable. The capsule of the SmokeGENIE gets warm during use. When the plastic cap of the capsule turns from purple to orange, the capsule is too hot to touch.

At the bottom is a 1/4" thread. This allows you to attach the SmokeGENIE to a tripod, clamp or other tool (see optional accessories). The SmokeGENIE comes complete; including capsule, tube, liquid and remote control. All you need to do is arrange the batteries.

Below is the usage time:

Battery consumption based on two 3200mAh batteries

• Mode 1: 250 minutes
• Mode 2: 80 minutes
• Mode 3: 45 minutes
• Mode 4: 30 minutes
• Mode 5: 20 minutes

Recharging via USB-C is possible for unlimited usage time.

Fluid consumption based on full 9 ml capsule:

• Mode 1: 170 minutes
• Mode 2: 30 minutes
• Mode 3: 13 minutes.
• Mode 4: 10 minutes.
• Mode 5: 8 minutes

Standby time: 120 minutes. At this, smoke is immediately available (no waiting time).

Included:

• 1x SmokeGENIE
• 1x Smoke capsule
• 1x Remote control
• 1x 60 ml smoke liquid
• 1x 30 cm tube (flexible)
• 1x Cap for tube
• 1x Heat shield for capsule
• 1x USB-C cable
• 1x User manual (EN)
