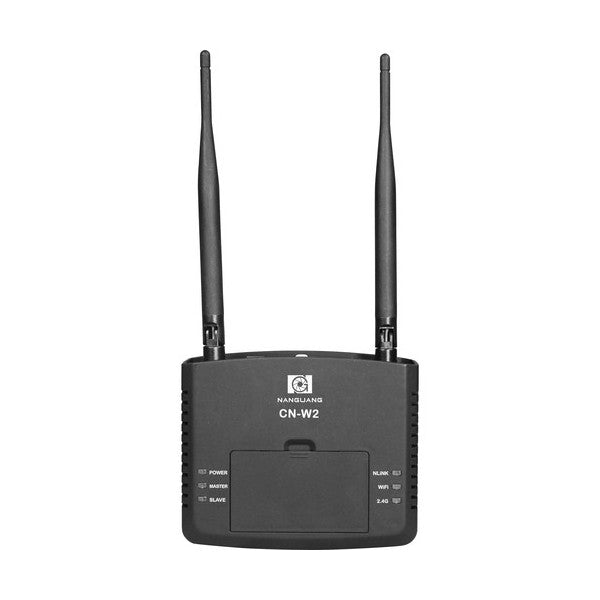

WI-FI Controller Nanlite CN-W2

NanGuang CN-W2 Overview

The CN-W2 Wi-Fi Adapter from NanGuang enables DMX-style control of compatible Wi-Fi lights. Wirelessly control brightness, color, and color temperature with the free iOS or Android app, then create and save lighting scenes for future use.

With an expanded 15 m range and battery-powered functionality, you can take your network out of the studio and to any location. The added DMX 5-pin connector allows connecting DMX controlled units from the app in addition to Wi-Fi enabled lights.

DMX Connectivity
The CN-W2 features a DMX 5-pin output which provides app control of lights without integrated Wi-Fi

Ethernet Connectivity
The integrated RJ45 connector allows connecting multiple units in Master/Slave functionality

AC/DC Power Operation
Use the included AC power supply for studio applications or Sony NP-F Series batteries for location shoots

Nanlite Product Compatibility
PavoTube 30C 4' RGBW LED Tube
PavoTube 15C 2' RGBW LED Tube
Forza 60 LED Monolight
Forza 300 LED Monolight
Forza 500 LED Monolight
MixPanel 60 RGBWW LED Panel
MixPanel 150 RGBWW LED Panel
LumiPad 11 Bi-Color Soft LED Panel
MixPad 11 Tunable RGB Hard and Soft LED Panel
MixPad 27 Tunable RGB Hard and Soft LED Panel
MixWand 18 RGB Hard and Soft LED Light Painting Wand
Compac 200 Dimmable 5600K Slim Soft Light Studio LED Panel
Compac 200B Bi-Color Slim Soft Light Studio LED Panel
Halo 16 Ring Light Bi-Color Kit
Halo 16C Bi-Color Tunable RGB 16" LED Ring Light

NanGuang CN-W2 Specs
Channels 512 (DMX)
Wireless Range: 15 m
Frequency 2.4 GHz
DC Input Power: 7.2 to 15 VDC
Battery Chemistry Lithium-Ion
Dimensions: 14.0 x 3.8 x 28.4 cm (Including Antenna)
Weight: 0.27 kg
Size: 34.8x23.1x7.1 cm
